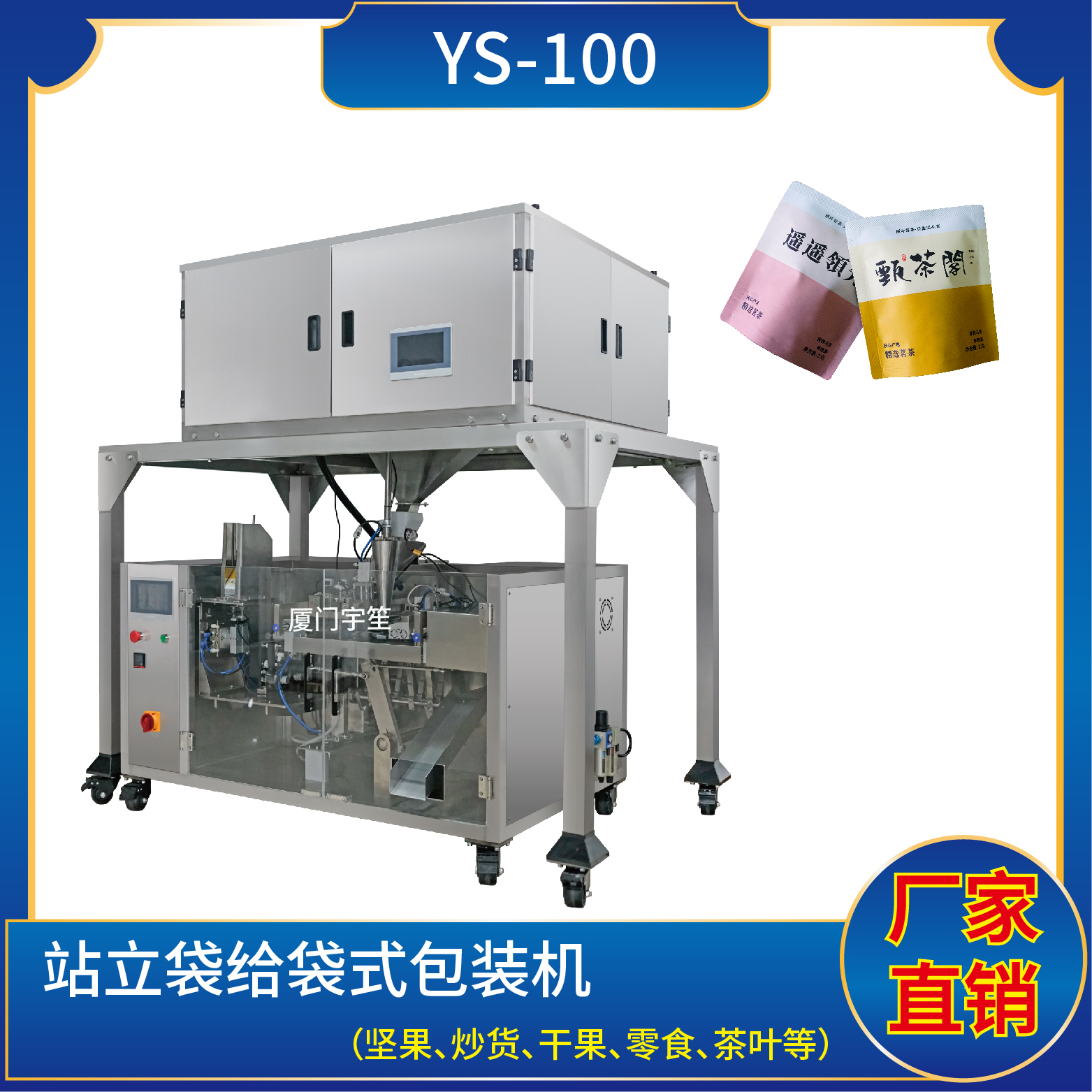

YS-100 站立袋給袋式包裝機
YP-SP100 給袋式包裝機(電子秤)
特 點 Characteristic
1、適用于食品、醫藥、化工、化妝品行業中顆粒、粉劑、液體、醬料等物品的計量包裝。
The machine is suitable for the food, medicine, chemical industry, cosmetics industry of liquids , sauce of measurement packing.
2、適用站立袋、包裝流程全自動、無需人工操作。可根據充填物料的性質選配不同的下料結構
All the works of bag making,measuring,filling,sealing,cutting and counting can be done automatically,at the same time,it can also according to the demand of customers printing batch number and other functions.
3、觸摸屏操作,PLC 控制,驅動步進電機控制袋長,性能穩定、調整方便、檢測準確。智能式溫控儀,PID調節,保證將溫度的誤差范圍控制在1℃以?xún)取?span lang="EN-US">
The touch screen operation, PLC control, drive stepper motor to control the bag length,stable performance,easy to adjust and accurate detection.Choose the intelligent temperature controller and PID control to ensure the error range of temperature controlled within 1 degree Centigrade.
4、包裝材料:聚丙烯/聚乙烯,鋁箔/聚乙烯,滌綸/鍍鋁/聚乙烯,尼龍/增強型聚乙烯,紙/聚乙烯等。
Packing material:BOPP/Polyethylene, Aluminium/Polyethylene, Paper/Polyethylene,
Polyester/Aluminizer/Polyethylene, Nylon/CPP and so on.

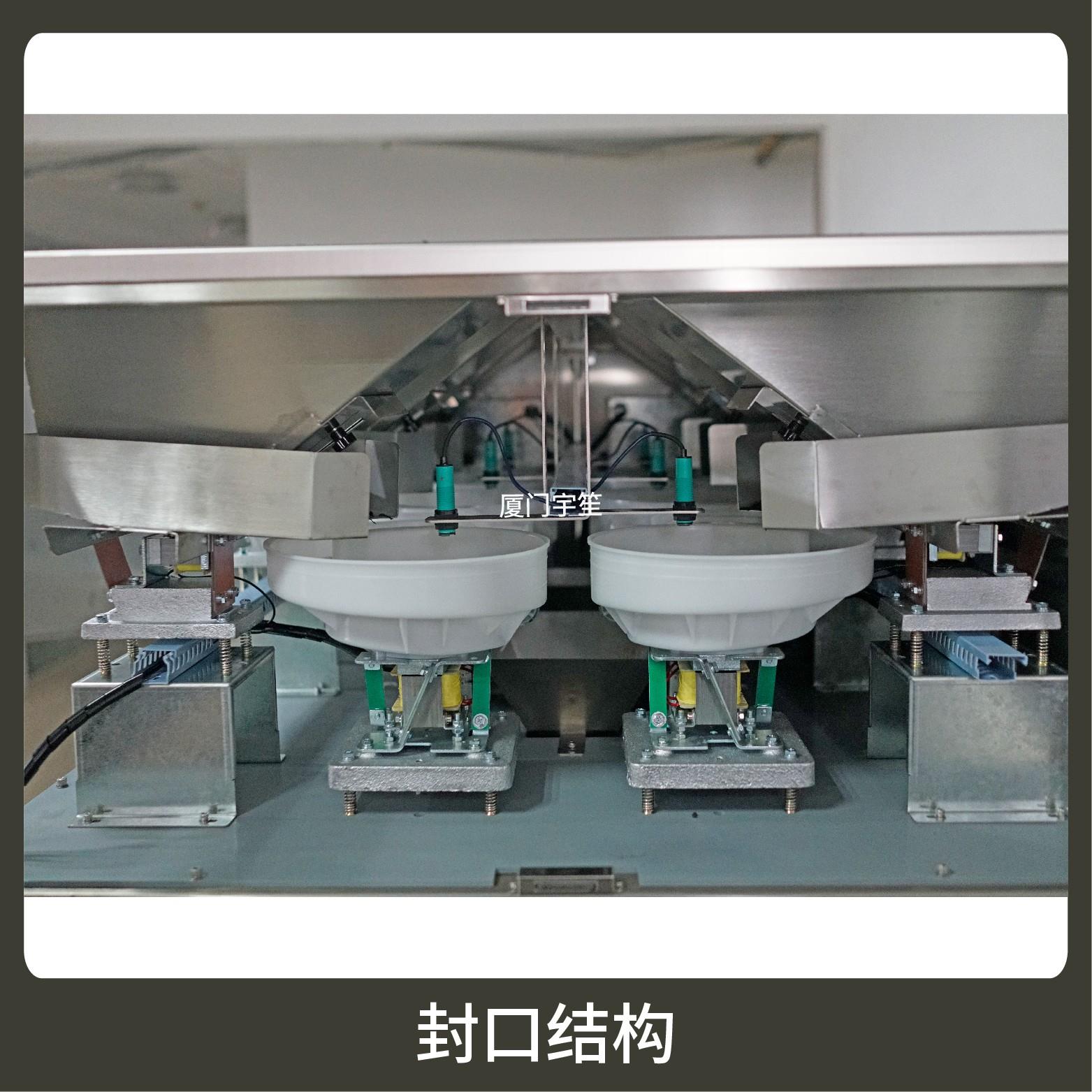

封口方式 Sealing Type
預置袋Prefab bag
技術參數
Technical Parameters
計量范圍:1 - 15 g(視物料特性而定)
Measuring Scope
制袋尺寸:長( L ) : 70 - 130 mm
Bag Size 寬( W ) : 70 - 120 mm
包裝速度:10 - 40 bags/min
Packing Speed
外型尺寸:1900 * 1160 * 1824 mm
Dimension ( L * W * H )
整機重量:200 kg
Weight
總 功 率:220V / 50-60Hz / 2.6kw
Total Power
1、適用站立袋、包裝流程全自動、無需人工操作。可根據充填物料的性質選配不同的下料結構
All the works of bag making,measuring,filling,sealing,cutting and counting can be done automatically,at the same time,it can also according to the demand of customers printing batch number and other functions.
2、觸摸屏操作,PLC 控制,驅動步進電機控制袋長,性能穩定、調整方便、檢測準確。智能式溫控儀,PID調節,保證將溫度的誤差范圍控制在1℃以?xún)取?span lang="EN-US">
The touch screen operation, PLC control, drive stepper motor to control the bag length,stable performance,easy to adjust and accurate detection.Choose the intelligent temperature controller and PID control to ensure the error range of temperature controlled within 1 degree Centigrade.
3、包裝材料:聚丙烯/聚乙烯,鋁箔/聚乙烯,滌綸/鍍鋁/聚乙烯,尼龍/增強型聚乙烯,紙/聚乙烯等。
Packing material:BOPP/Polyethylene, Aluminium/Polyethylene, Paper/Polyethylene,
Polyester/Aluminizer/Polyethylene, Nylon/CPP and so on.
計量范圍:1 - 15 g(視物料特性而定)
Measuring Scope
制袋尺寸:長( L ) : 70 - 130 mm
Bag Size 寬( W ) : 70 - 120 mm
包裝速度:10 - 40 bags/min
Packing Speed
外型尺寸:1900 * 1160 * 1824 mm
Dimension ( L * W * H )
整機重量:200 kg
Weight
總 功 率:220V / 50-60Hz / 2.6kw
Total Power
適用于食品、醫藥、化工、化妝品行業中顆粒、粉劑、液體、醬料等物品的計量包裝。
The machine is suitable for the food, medicine, chemical industry, cosmetics industry of liquids , sauce of measurement packing.
